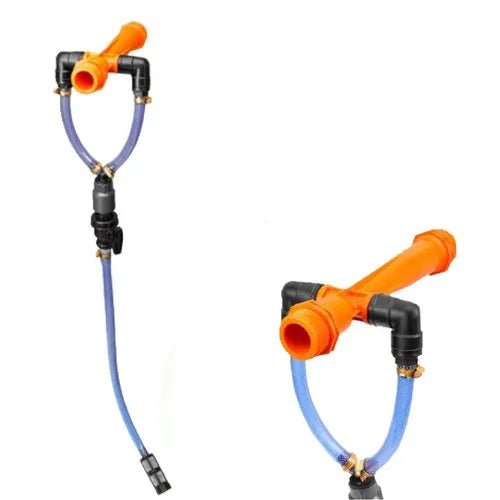

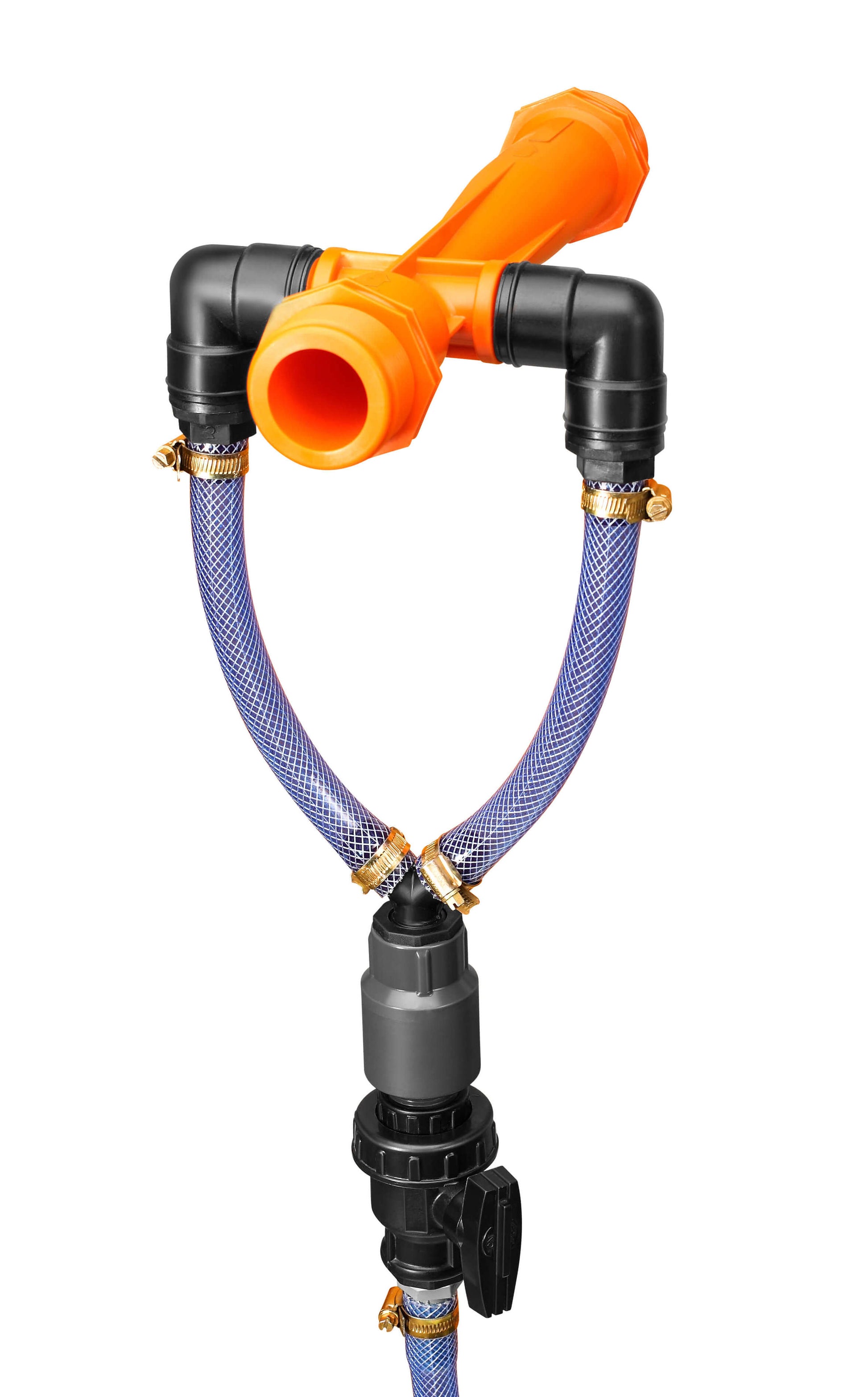

Super Venturi Injector

It is used for higher quantity fertilizer application or chemical injection in irrigation system by creating minimal pressure difference on head unit.

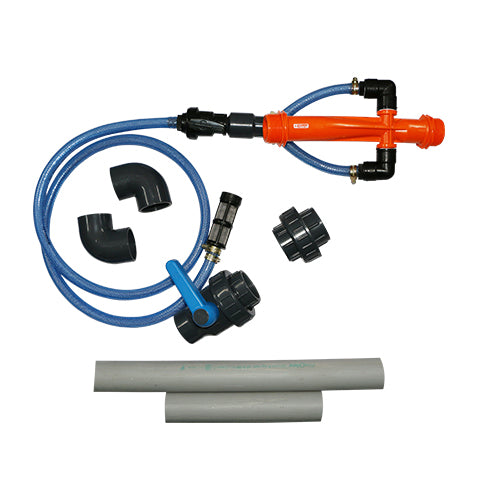

Super Venturi with Complete Assembly.

APPLICATIONS

• It is used for higher quantity fertilizer application or chemical injection in irrigation system by creating minimum energy loss.
• Min. pressure differential less than 20% enables a chemical or fertilizer to be drawn through the suction port and is dynamically entrained into the irrigation system.
• Min. motive flow required to inject higher chemical/fertilizer injection into irrigation system.

FEATURES

• Controlled Adjustable suction either from one port or both port as required in field.
• Deliver plant nutrients directly into wetted zone.
• Can be used large variety of chemical / fertilizers.
• Uniform fertilizer Application.
• More saving of energy as well as manpower
• Spring loaded external NRV for easy cleaning.

TECHNICAL SPECIFICATIONS

• Inlet/Outlet: 2” inch male BSP/NPT threaded connections
• Suction Port: 2nos., 1” Male threaded Suction Port
• Working pressure 1-6 kg/cm²
• External NRV: 2nos.: 1” Male x female threaded connection.
• Min. Pressure Differential required: 20%
• External NRV cracking pressure: 0.1-0.15kg/cm²
• No performance variation by horizontal/vertical installation.
