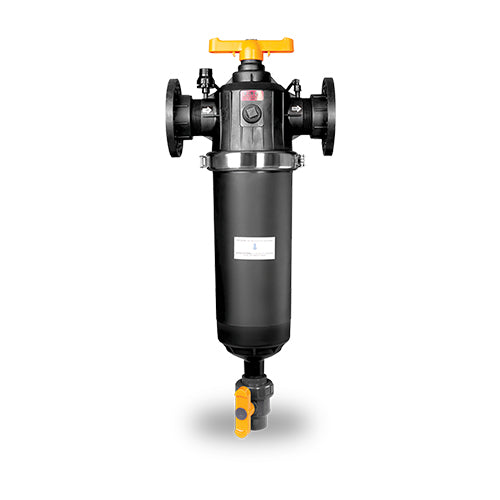

Semi Automatic Disc Filter

Semi Automatic Disc Filter

Regular price Rs. 5,999.00
Regular price Sale price Rs. 5,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Semi Automatic Disc Filter-Automat

  • Semi Automatic Disc Filter is ISI certified product.
  • Semi Automatic Disc Filter is made with engineering plastic so it does not easily get rust.
  • Semi Automatic Disc Filter work on the process of flow passes outside from inside of Disc cartridge.
  • Semi Automatic Disc Filter uniform distribution of flow into filter housing optimizes the filtration process.
  • Semi Automatic Disc Filter is designed for pressure rating PN8 (8bar).
  • Semi Automatic Disc Filter has 2 male threaded pressure port at the top for easy visibility of pressure.

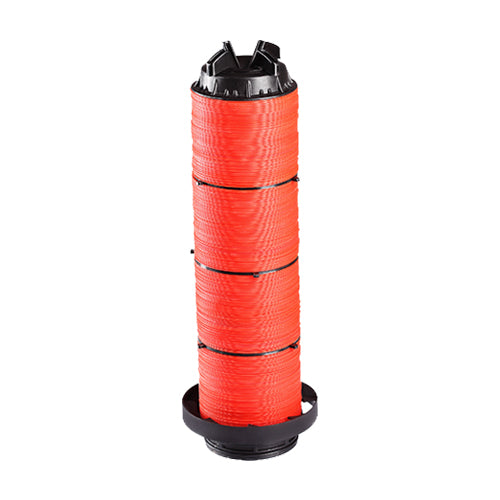

  • Disc cartridge enabled with spring-loaded for full compression of the disc and loosen during cleaning.

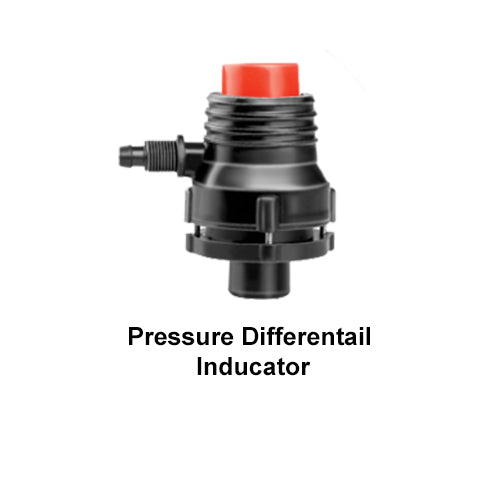

  • Semi Automatic Disc Filter with clogging indicator, Red-colored pop up comes out at 0.6 kg/cm2 pressure differential, indicated user to clean filter manually.
  • During the cleaning operation, all inlet water passes through the pipe, and water jets remove dirt from the discs.
  • Semi Automatic Disc Filter has a barrel with 1 and 1/2 inch Drain port.
  • The filter has Handle for the rotation in process of cleaning the discs without dismantling the filter.
  • Grooved disc design with dimensional consistency proven with more than 95% filter efficiency.
  • 2"-134T-SAD
  • 3"-136T-SAD

—– Semi Automatic Disc Filter Cleaning Instructions —–

  1. Cleaning of the filter must be done when the pressure differential across the disc filter reaches 0.6 kg/cm2 (8.5psi) or when the clogging indicator red button pops up.
  2. Cleaning the Semi-Automatic Filter must be done while the filter is under pressure of water flow.
  3. Gradually open the flushing valve of the filter.
  4. To start the cleaning of the filter, turn the handle (top of the filter) 90 degrees in a clockwise direction.
  5. Cleaning operation starts, system pressure might increase during the cleaning operation.
  6. When the cleaning operation is done, the first filter handle direction should be at filtration mode. And then the flushing valve gradually close.
  7. In case the filter is still clogged (pressure indicator button is up.) Repeat the above steps for effective disc cleaning.

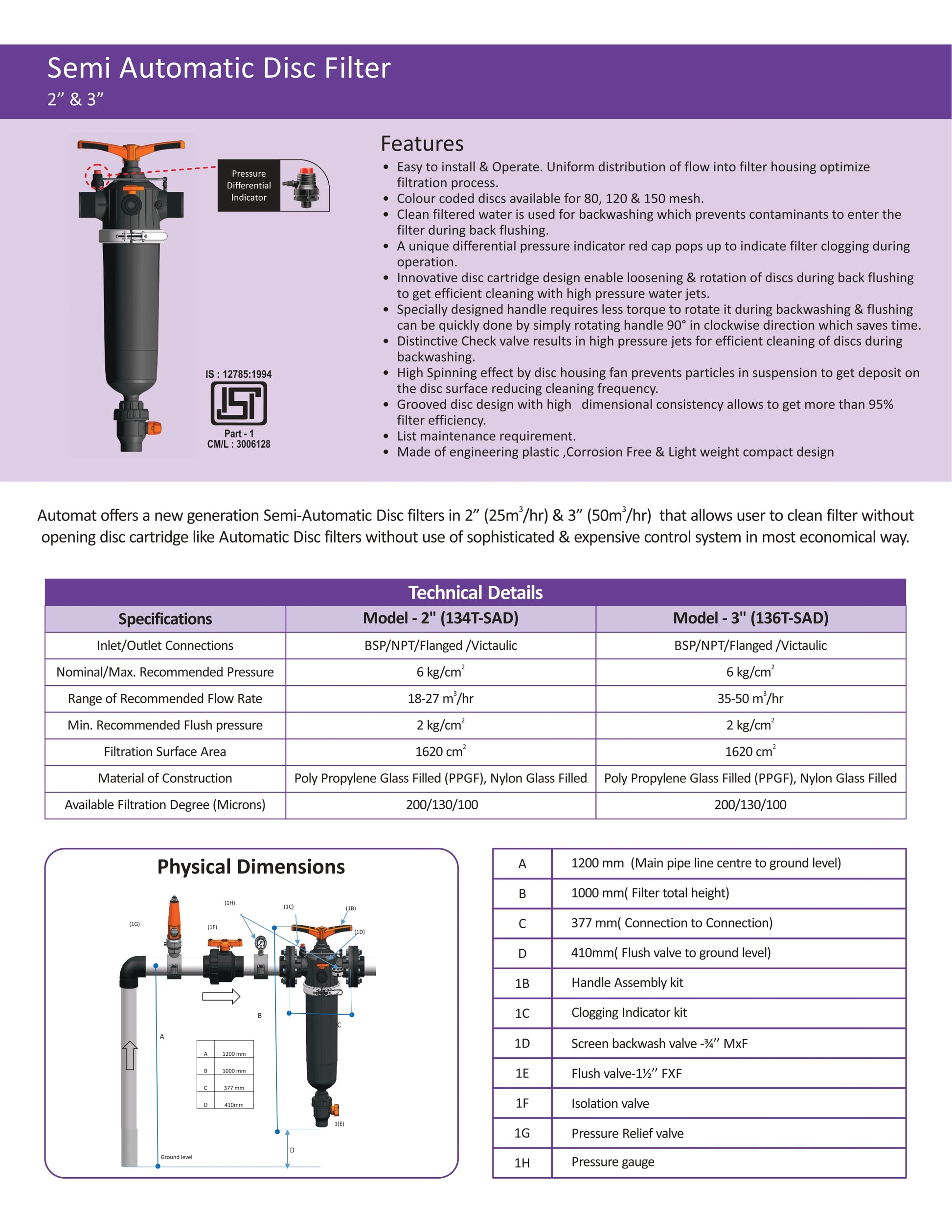

Performance Data
Model 2"-134T-SAD 3"136T-SAD
Max. Working Pressure 8 kg/cm2 8 kg/cm2
Recommended flow 417 lit/m (25m3/hr) 667 lit/m (40 m3/hr)
Range of Flow Rate 18-27 m3/hr 35-50 m3/hr
Filter Disc (standard) 120 mesh PP Red disc (Single Removable cartridge)
Filtration Surface area 1080 cm2 1590 cm2
Inlet/outlet connection 2" BSP/NPT male thread 3" BSP/NPT male thread
Closing System Stainless Steel / Hybrid Clamp
Distance between End connections 341 mm 344 mm
Filter height (With Ball Valve) 800 mm 930 mm
Filter width (With End Plug) 235 mm 235 mm
Cartridge Diameter 121 mm 121 mm
Cartridge Length 375 mm 510 mm
Drain Valve (1no.) 1½" Female x Female threaded
End Plugs (1nos.) ¾" Male Threaded
