1 5

Hydro cyclone Filter-ISI

Hydro cyclone Filter-ISI

Rs. 4,999.00
Rs. 4,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

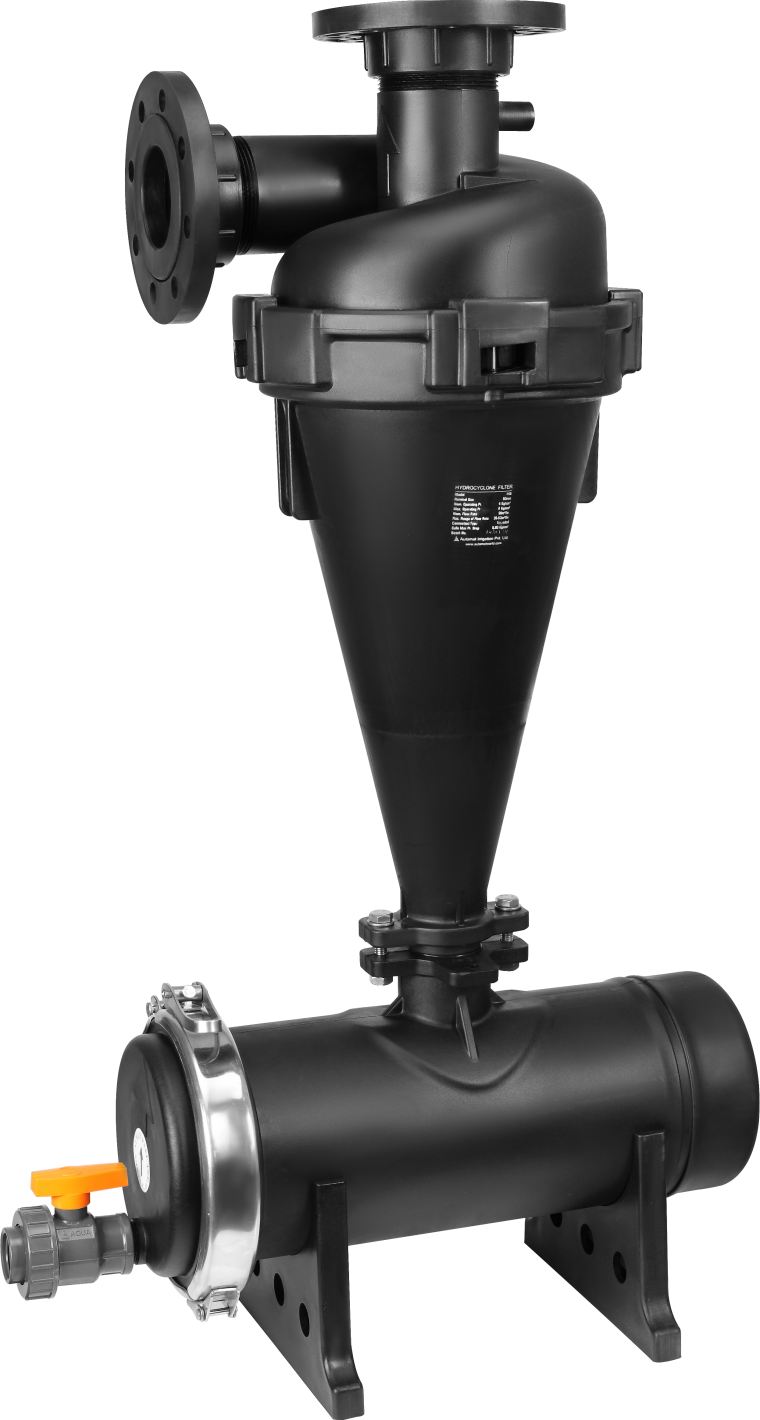

Hydro cyclone Filter

Use to clean solid particles from water

  • Removes fine sand and silt particles of size above 75 microns.
  • Dirt can be easily flushed out through drain port.
  • Collector chamber can be easily cleaned by opening collector cover.
  • Hybrid Nylon Clamp with SS Lock used to open/close collector cover from collector chamber.
  • Easy to install and low maintenance.
  • Stand for Height Increase.
  • Available in
    2” : HT-144M
    2½” : HT-145M
    3” : HT-146M

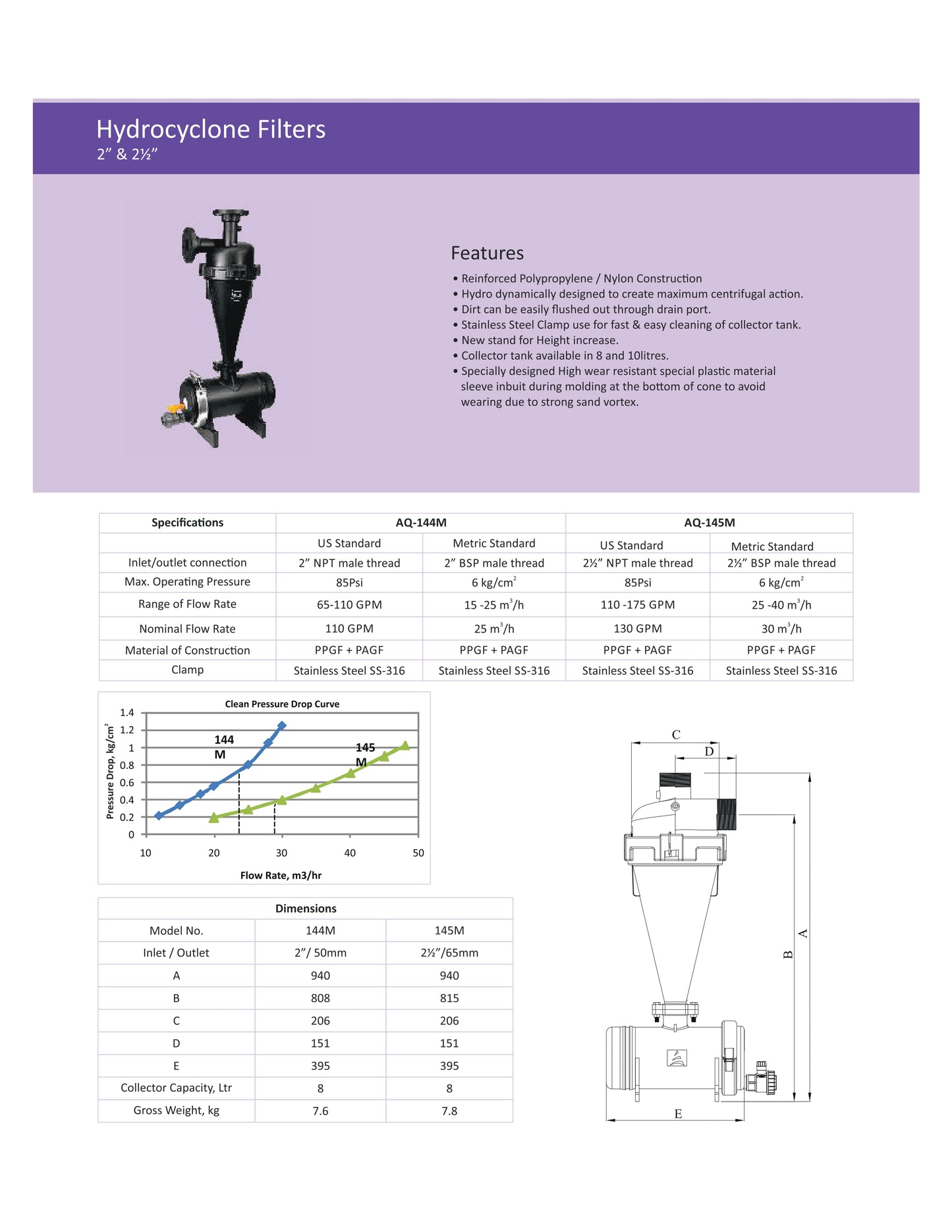

Specifications HT-144 HT-145
Inlet/outlet 2"NPT 2"BSP 21/2NPT 21/2BSP
Max.Operating Pressure 85 PSI 6 kg/cm2 85 PSI 6 kg/cm 2
Range of flow Rate 65-110 GPM 15-25 m3/hr 110-75GPM 25-40 m3/hr
Nominal Flow Rate 110 GPM/hr 25 m3/h 130 m3/h 30 m3/h
Material of Construction Reinforced PP+ Nylon Reinforced PP+ Nylon



Performance Data
Model No. Inlet / Outlet Inch/mm Rec. Range of Flow Rate, m3/hr Nominal Flow Rate m3/hr Dimensions (mm) Capacity of Underflow Chamber (ltr) Gross Weight
A B C D E
144M 2”/50 15-25 25 940 808 206 151 395 8 7.6 kg.
145M 2½”/65 25-40 30 940 815 206 151 395 8 7.8 kg.
146M 3”/ 80 35-50 50 990 868 248 175 395 8 9.4 kg.
990 868 248 175 482 10 9.6 kg.



For all type of micro irrigation
